Model |
GPC 50D |
|
Conveyor Speed |
18 m/min |
|
Carton Size |
L200–600 × W150–500 × H150–500 mm |
|
Power Supply |
220 V, 50/60 Hz, 1 Phase |
|
Power |
400 W |
|
Adhesive Tape Width |
55–72 mm |
|
Air Consumption |
50 NL/min |
|
Air Compressing |
0.6 MPa |
|
Table Height |
600 ± 150 mm |
|
Machine Dimension |
L1770 × W850 × H1520 mm |
|
Machine Weight |
250 kg |

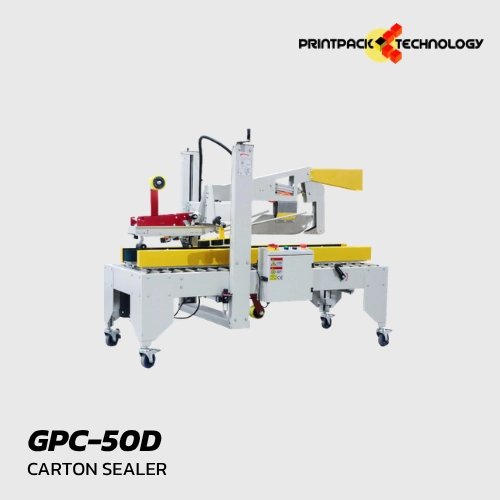

GPC-50D
Semi-auto flaps folding carton sealer GPC-50D automatically attaches the to the top and bottom, no need for manual work. It uses adhesive tape to seal the carton, not only the sealing effect is beautiful, and the sealing is firm. The uses of the automatic packaging line will better reflect the value of this machine. this type of sealing machine is widely used in food, beverage, tobacco, daily chemical, automotive, cable, electronics and other industries at home and abroad.
Durable Accessories
Made by independent technology, using imported parts, electrical components
Easy to Operate
Automatically adjust width and height according to the box size
Belt Driven
Driven by both side, sealing from top and bottom, economy stable and fast
Security
Equipped with blade guard, avoiding getting injured while operating
Saving Labours
All the operations can be done automatically to achieve packing unmanned
High Applicability
This macjine not only can work indpendently, but also could work with automatedassembly line
