Printjet 1L The High-Performance, Cost-Effective TIJ Coding Solution for Modern Packaging Lines
In today’s fast-paced industrial manufacturing environment, precise product coding is non-negotiable. From tracking batch numbers and expiration dates to printing scannable QR codes and GS1 barcodes, manufacturers require coding equipment that delivers absolute accuracy without causing operational downtime or overstretching budgets.

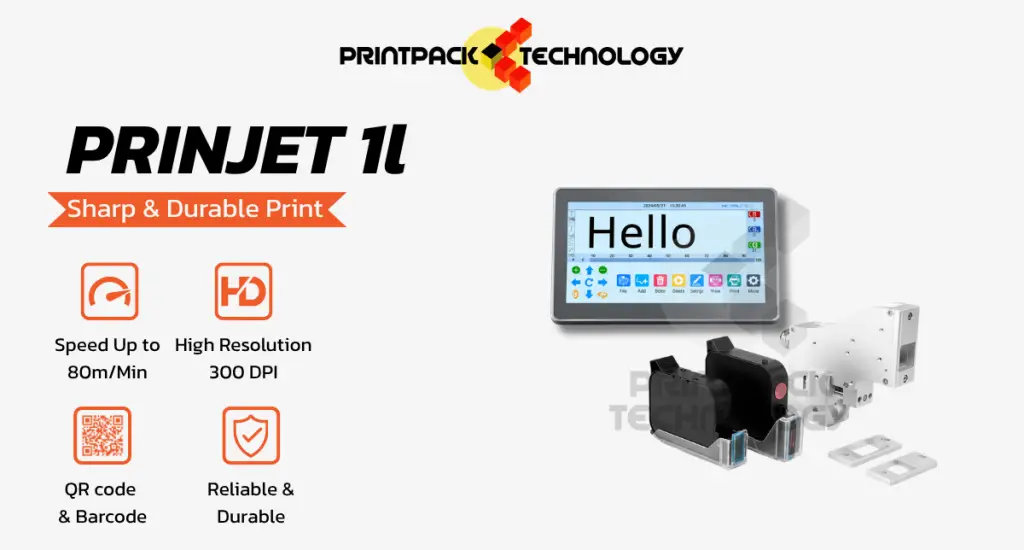

Introducing the Printjet 1L, an entry-level Thermal Inkjet (TIJ) printer engineered specifically by Printpack Technology to combine high cost-performance, robust durability, and intuitive operation for scaling production lines.
Key Features That Drive Efficiency on the Factory Floor
1. Aviation-Grade Aluminum Alloy Construction
Industrial environments can be tough on electronic machinery. Dust, humidity, and constant vibration can degrade lower-grade equipment over time. The Printjet 1L features a controller and printhead housed in durable aviation-grade aluminum alloy, ensuring long-term operational stability and protection against daily factory wear and tear.
2. Intuitive 7-Inch Capacitive Touchscreen Interface
Complex menu navigation and clunky keypads slow down line operators. The Printjet 1L comes equipped with a large 7-inch capacitive touchscreen display (1024×600px) running a responsive Real-Time Operating System (RTOS) powered by a 480MHz RISC-V processor. Creating, editing, and managing print messages is as smooth and intuitive as operating a modern tablet.
3. High-Speed, High-Resolution Printing
Despite its compact entry-level footprint, the Printjet 1L does not compromise on performance. It delivers printing speeds of up to 80 meters per minute at a crisp 300 DPI resolution, ensuring that every lot number, date stamp, and barcode remains sharp and easily readable by automated scanners.
4. Seamless Data Import via USB
Managing variable data across multiple product SKUs is simple. Through its external USB interface, operators can instantly import database files in standard formats, including .xls, .xlsx, .csv, and .txt. The system supports a wide array of variable content, including text, customizable date/time formats (including Julian year and day), counters, shift codes, and various 1D/2D barcodes (QR Code, DataMatrix, PDF417, EAN13, Code128, and GS1 standards).
Versatile Ink Compatibility Across Substrates
Whether your packaging line handles porous paper cartons or non-porous plastic containers, the Printjet 1L easily adapts using 0.5-inch (up to 12.7mm) or 1-inch (up to 25.4mm) printhead cartridges:
- Water-Based Inks: Perfect for porous substrates such as corrugated shipping boxes, paper bags, and outer carton packaging.
- Solvent-Based Inks: Ideal for non-porous materials including PET bottles, aluminum cans, flexible foil films, glass, and plastic caps.
- UV Inks: Designed for specialized industrial substrates requiring maximum adhesion and immediate drying.
Technical Specifications at a Glance
Specification | Details |
Model | Printjet 1L (PJ 1L) |
Display | 7-inch Capacitive Touch Screen (1024×600px) |
Max. Print Speed | Up to 80 m/min @ 300 DPI |
Max. Print Height | Up to 12.7mm (0.5″ cartridge) / Up to 25.4mm (1″ cartridge) |
Throw Distance | 2 – 5 mm |
Inks Supported | Water-based / Solvent-based / UV ink |
Processor & Memory | RISC-V Processor (480MHz), 4GB Storage |
Power Supply | Input AC 100-240V; Output 13.5V/3A |
Global Languages | English, Chinese, French, Spanish, Arabic, Portuguese, German, Russian, Korean, Japanese, and more |
Upgrade Your Coding Line with Printpack Technology
Whether you are upgrading from manual hand-stamping or adding an efficient coding unit to a new conveyor system, the Printjet 1L delivers the perfect balance of affordability, ease of use, and industrial reliability.
Ready to see the Printjet 1L in action on your packaging line?
Contact the Printpack Technology engineering team today to schedule a free live demonstration or send us your packaging samples for testing!
