Model |
MH-FG-2000F |
|
Power Voltage |
IP AC220V 50/60Hz 1.25KW |
|
Speed of Turntable |
0–10 r/min |
|
Diameter of Turntable |
Φ1650mm (Optional: 1800mm, 2000mm) |
|
Mast Height |
H2400mm (Optional: 2000/2700/3000/3200/3400mm) |
|
Film |
LL DPE film, width ≤5500mm, out diameter ≤280mm |
|
Capacity |
2000kg |
|
Max Wrapping Height |
Mast height – 400mm |
|
Package Size |
2650 × 1650 × 800mm |
|
G.W./N.W. |
800kg / 750kg |
|
Machine Configuration |
PLC: German “Siemens”; Inverter: French “Schneider”; Touch screen: Chinese “MEIWA”; Travel Switch: French Schneider; Button Switch: French “TE”; Connector: French “TE”; Sensor: German “P+F”; Motor: Chinese “MEIWA” |
|
Noise |
≤75dB |
|
Environment |
Humidity ≤98%; Temperature: -10–40°C |

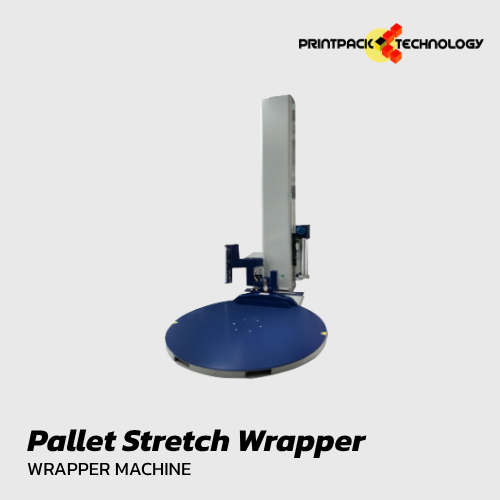

Pallet Wrapping
