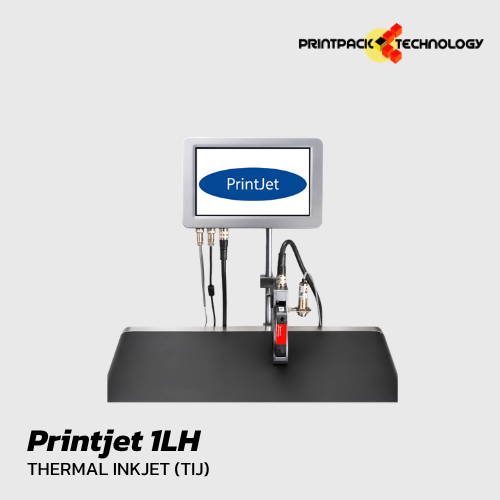

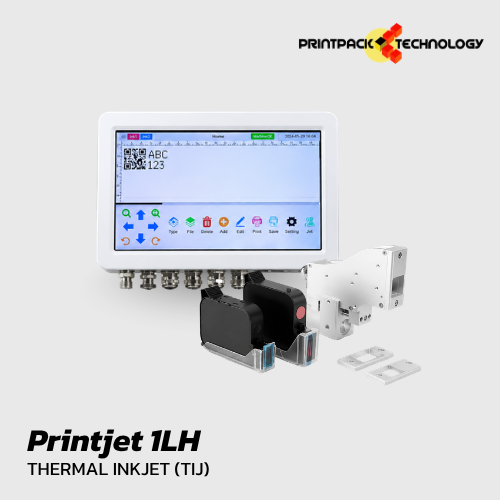

Printjet 1LH

Model

P1LH

Printing Technology

HP TIJ 2.5

Controller & Printhead Material

Aviation-grade aluminum alloy

Screen

10.1-inch capacitive touchscreen (1024×600px)

Supported Printheads

1–4

Printhead Cable

1.5m as standard

Compatible Inks

Water-based ink / Solvent-based ink / UV ink

Cartridge Type

Half inch / One inch

Max Print Height

Up to 50mm (with half-inch cartridge) / Up to 100mm (with one-inch cartridge)

Max Print Length

2.382m

Resolution

Vertical: 300dpi, Horizontal: 600dpi / 300dpi / 150dpi / 100dpi

Gray Level

8 adjustable levels (from -2 to 6)

Throw Distance

2–5mm

Max Print Speed

100dpi: 539 m/min; 150dpi: 420 m/min; 300dpi: 210 m/min

Max Print Frequency

Fixed data: 80+ times/second; Variable data: 3+ times/second (will be reduced by 50% when all printheads printing at the same time)

Special Functions

Supports 0–90° rotation printing of the nozzle, user management, cost calculation, BarTender Designer, and ZPL simulator

Special Applications

Marshal model, Reciprocating printing, Continuous printing, Sensor trigger continuous printing, Repeat printing

Nozzle Selection

Left channel / Right channel / Double-row high speed

External Communication

USB, RS232, Ethernet

Languages

Chinese, English, Korean, Japanese, French, Spanish, Portuguese, German, Russian, Thai, Arabic, Persian, etc.; Customizable upon request

Print Content

Text, images, variable text, date & time, batch, shift, counter, QR codes, barcodes, GS1 codes, tables, separator, etc.

Fonts

User-definable, supports Windows font formats

Supported Image Formats

JPG/PNG/BMP

File Import Formats

xls/xlsx/csv/txt

Variable Data Import Formats

xls/xlsx/csv/txt

Date Format

Customizable, supports Julian year, Julian day

Code Type

Code39/Code128/UPCA/EAN8/EAN13/Data Matrix/EAN14/UPCE/INT25/ITF14/Code93/PDF417/Grid Matrix/Code11/Code39+/Code16k/Code49/Fluttermark/VIN/NVE-18/Micro PDF417/Micro QR code/GS1 DataBar-14/GS1 DataBar Expanded/GS1 DataBar-Stack/GS1 DataBar-Stack-Omini/GS1 DataBar-Expanded-Stack/GS1-FS1/GS1-QRCode/Aztec Code, Customizable upon request

Numeral Systems

Binary / Octal / Decimal / Hexadecimal

Operating System

Android

Processor Parameters

Processor: Amlogic S905X5M Processor; CPU Core: Quad-Core Cortex-A55 (2.5GHz); Integrated GPU: ARM G310 V2 GPU (0.85GHz) Network Card: 100Mbps

Storage Capacity

Built-in 16G EMMC memory card, 4G available for user

Power Supply

Input: AC100–240V, 50/60Hz; Output: 30V/3A (1–3 heads) or 30V/5A (4 heads)

Options

Encoder/alarm light/XY-axis adjustment bracket/floor stand

Operating Temperature & Humidity

0–45°C (32–113°F), 20–80% RH
