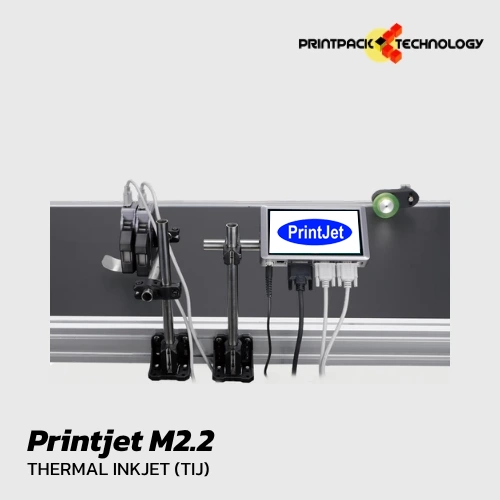

Printjet M2.2

Technology

HP TIJ 2.5 Thermal Inkjet Technology

Dimensions

175 × 101 × 34 mm

Printhead *2: 145 × 92 × 107 mm

Package Size

Inner Diameter: 415 × 240 × 190 mm

Weight: 5.5 kg

Controller N.W.

454 g

Input Power

24.0V/1.5A, 36W

Print Height

1–25.4 mm

Resolution

Printing Speed

Up to 100 m/min (fast dry cartridges)

Print Content

Codebar, Num, Chinese, Imagr, Date, Group, Counter, Graphic, Dynamic Context, Scanner and Database

Interface

Ethernet interface

USB interface: USB flash drive and auxiliary communication equipment

DVI interface: Connect with cable box

Cable box interface: Alarm kit, external photocell, synchronizer I/O input (2 Input and 2 Output) and RS232

Extended cable box interface: Alarm kit, external photocell, synchronizer, IO input (6 Input and 5 Output) and RS232

DC interface: Connect to the power cord

DB15 interface: Controller/Printhead connect cable #1

Display

6.5-inch, 800 × 480 resolution capacitive touch screen

Ink Management

Automatic identify the ink type and confirm the best printing parameters;

Only original HP cartridges are supported; Automatic measurement system for ink consumption

Certification

CE, FCC

Environment Requirements

Operating: -10°C to +55°C; 10%–85% RH

Storage: -20°C to +80°C; 10%–90% RH
