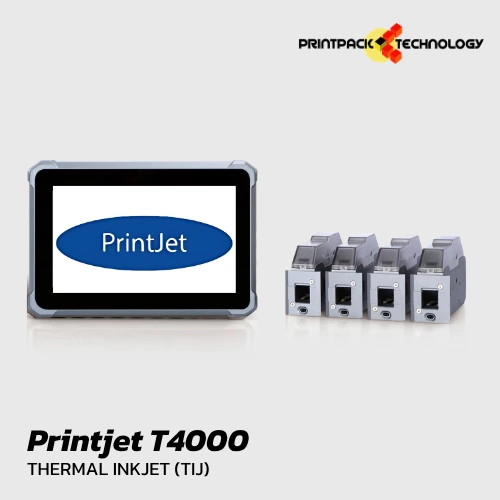

PRINTJET T4000

Technology

HP TIJ 2.5 Thermal Inkjet Technology

Resolution

Vertical: 600 dpi; Horizontal: 40–1200 dpi (Single head)

Communication Protocol

Supports external communication protocols such as HTTP, TCP, RS232/485, Modbus-TCP/Modbus-RTU

Screen

7-inch color capacitive touch screen

Dimension

Controller: 224 × 151 × 38 mm

Printhead: 145 × 91 × 47 mm

Language

Chinese, English, Korean, Russian, Spanish, Japanese, French, German, Italian, Turkish, Indonesian, Hungarian, Portuguese (Customization support)

Keyboard

Chinese, English, Korean, Arabic, Russian, Spanish, Japanese, French, German, Hungarian, Czech, Greek, Ukrainian (Customization support)

Counter

Ordinary counter, the carry bit source can be set flexibly

Printing Height

1–50.8 mm (Two printheads, free combination)

Printing Speed

Up to 200 m/min (Fast dry cartridges)

Printing Performance

QR code printing frequency up to 79 pcs/sec

Supported Barcode

Codebar, Code25, Code39, Code93, Code128, UPCA, UPCE, EAN, ITF14, QR Code (GSI supported), Data Matrix (GSI supported), Grid Matrix, Maxicode, PDF417 (Others upon request), Maxicode

Date Format

The date format can be set flexibly

Interface

Ethernet interface *1

usb iNTERFACE *1 (USB flash drive, scanner and auxiliary communication equipment)

12-pin aviation interface*1 (alarm kit, RS232, external IO input)

8-pin aviation iinterface*2 (external photocell and synchronizer)

17-pin aviation interface (connect with printhead)*2

Ink Management

Recognizes ink type and automatically chooses the most suitable parameters;

Only original cartridges are supported;

Automatic measurement system for ink consumption

Set Up

Equipped with standard side printing/down printing bracket; Optional spring-back mechanism

Environment Requirements

Operating environment: -10°C–+55°C

Storage environment: -20°C–+70°C

Input Power

AC 100–240V / 50–60Hz

Output Power

24.0V, 4A, 96.0W

Product Certification

CE, FCC
